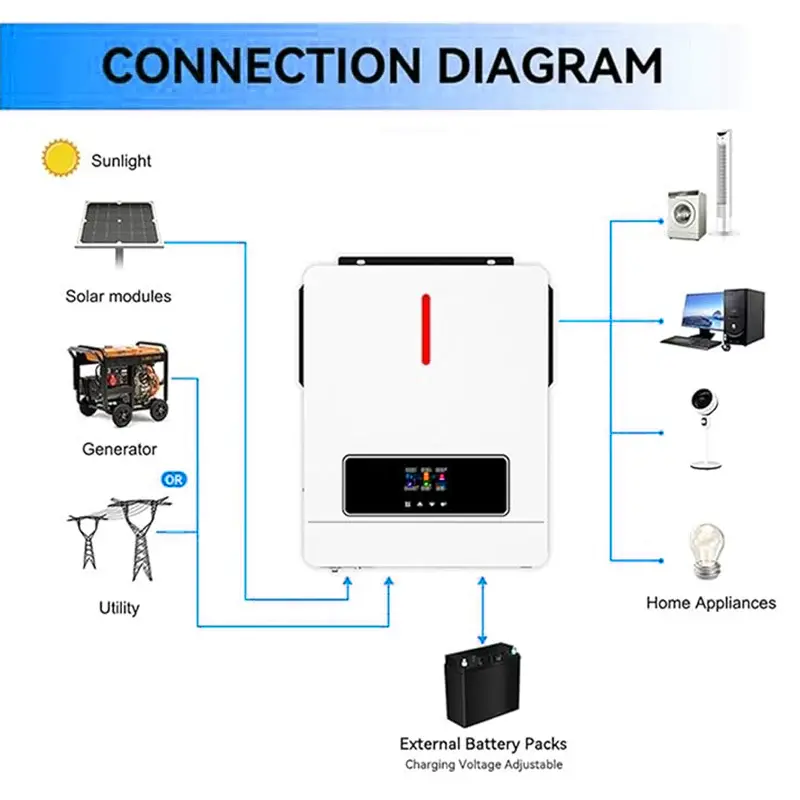

3600/4200/6200W All In One Inverter Charger

MPPT Controller + High Conversion Inverter
Pure sine wave solar inverter (on/off grid)
Multi-protection
Dual communication ports for battery communication and Wifi communication
Intelligent battery charging design to optimize battery life

Features
Pure sine wave solar inverter (on/off Grid)
Built-in 120A MPPT Solar charge: max 6200W (for 3.6/4.2KW), max 6500W (for 6.2KW)
WIFI&GPRS available for IOS and Android
Output power factor 1.0
High PV input voltage range(60-500VDC)
Inverter can run without battery
Built-in anti-dust kit for harsh environment
One-key restoration to factory Settings
Smart battery charge design to optimize battery life
Built-in Lithium battery automatic activation
Dual output
Dual communication ports for Battery communication and Wifi communication

Specification
GRID-TIE OPERATION
PV Input (DC)
NominalDC Voltage/ Maximum DC Voltage: 360/500VDC
Start- up Voltage /Initial Feeding Voltage: 60VDC/90VDC
MP PT Voltage Range: 60-450VDC
Maximum Input Current: 1/18A ;  1/22A

Grid Output (AC)
Nominal Output Voltage: 220/230/240VAC
Output Voltage Range: 195-253VAC
Nominal Output Current: 15.7A / 18.2V / 27.0A
Pomer Factor: > 0.99

EFFICIENCY
Maximum Conversion Efficiency (DC/AC): 98%

Two Load Output Power
Full Load: 3600W / 4200W / 6200W
Maxium Main Load: 3600W / 4200W / 6200W
Maxium Second Load(battery mode): 1200W / 1400W / 2067W
Maxium Load Cut Off Voltage: 26VDC / 26VDC / 52 VDC
Maxium Load Return Voltage: 27 VDC / 27 VDC / 54 VDC

OFF-GRID OPERATION
AC Input
AC Start.up Voltage / Auto Restart Voltoge: 120-140ADC/180VAC
Acceptable Input Voltage Range: 90-280AVC or 170-280AVC
Fraquency Range: 59-61±1HZ
Maximum AC Inpul Current: 21.1A / 24.7A / 38.4A

PV Input (DC)
Nominal DC Voltage/Maximum DC Voltage: 360/500VDC
MPPT Voitage Range: 60-450VAC
Maximum Input Current: 1/18A ; 1/22A

Battery Mode Output (AC)
Nominal Output Voltage: 220/230/240VAC
Output Waveform: Pure Sine Wave
Eciency(DC toAC): 94%

Battery & Charger
Nominal DC Voltage: 24VDC / 48 VDC
Maximum Solar Charging Current: 120A
Maximum AC Charging Current: 100A
Maximum Solar+AC Charging Current: 120A

HYBRID OPERATION
PV Input (DC)
Nominal DC Voltage/Maximum DC Voltage: 360/500VDC
Start-up Voltage/Initial Feeding Voltage: 90VDC/120VDC
MPPT Voltage Range: 60-450VDC
Maximum Input Current: 1/18A ; 1/22A

Grid Output (AC)
Nominal Output Voltage: 220/230/240VAC
Output Voltage Range: 195-253VAC
Nominal Output Current: 15.7A / 18.2A / 27.0A

AC Input
AC Start-up Voltage /Auto Restart Voltage: 120-140VAC/180VAC
Acceptable Input Voltage Range: 90-280VAC or 170-280VAC
Maximum AC Input Current: 21.1A / 24.7A / 36.4A
Maximum AC Charging Current: 100A

GENERAL
Dimension D*W*H(mm): 420*350*110
Cartoon Dimension D *W*H(mm): 500*415*180
Net Weight(kgs): 8.0 / 8.0 / 8.9
Gross Weight (kgs): 9.0/ 9.0 / 10.0
Communication Port: RS232/RS485/WIFI/GPRS/LITHIUM BATTERY
Humidity: 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature: -10°C - 50°C
Compliance Safety: CE

(Price is only for pickup at Riverwood 2210 NSW. If you require shipping please contact us before your purchase)
