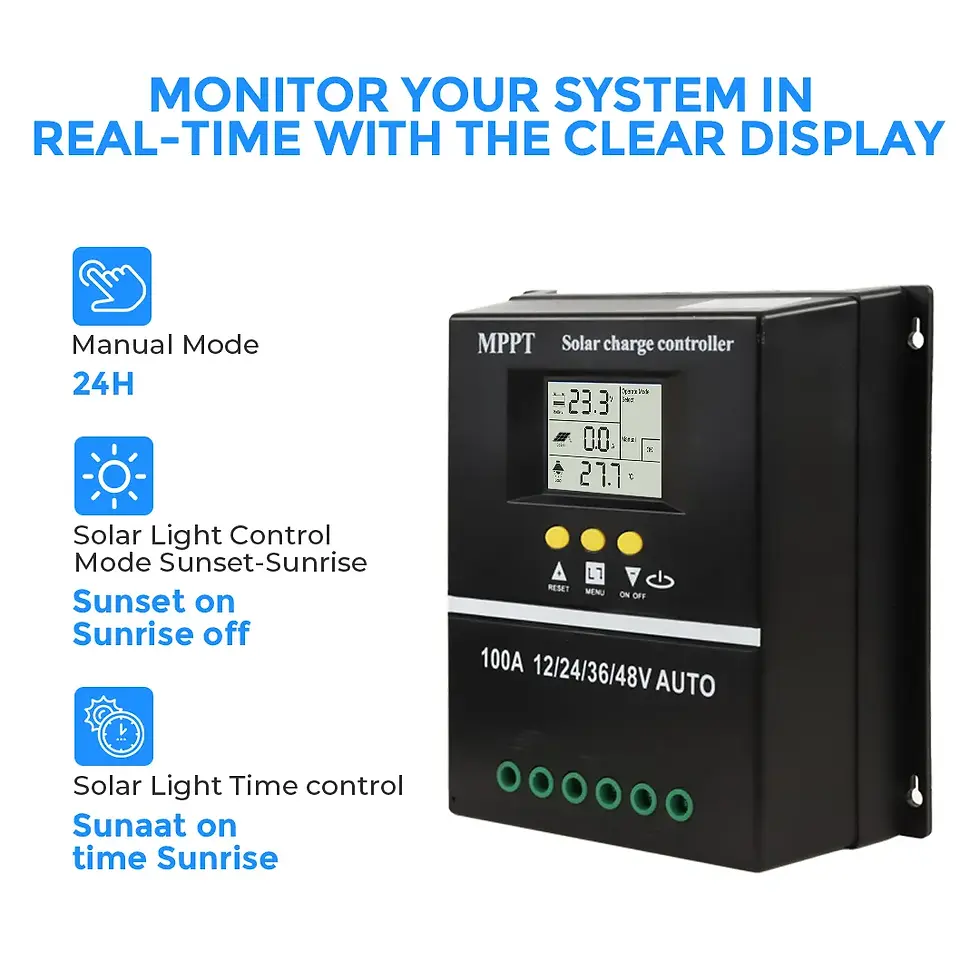

100A 12/24/36/48V MPPT Solar Charge Controller

Innovative MPPT technology with up to 99% tracking efficiency
Multiple intelligent protections
Powerful LCD display, easy to operate, intuitive LCD display clearly shows status and data, and allows mode switching and parameter configuration.
Industrial-grade main control chip: 16AD sampling accuracy, accurate real-time display of temperature/charging current, discharge current, power generation at a glance

Specification
Charging Efficiency: ≥95%
Maximum Output Current Rating: 100A
System Voltage: 12/24V/36V/48V
USB Output: 5V/2A
Self-consume: <50mA
Connector Type: MC-4
Battery Types: AGM, Gel, Flooded, Lithium-iron Phosphate
Input Fuse Rating: 125A
Output Fuse Rating: 100A

Mechanical Specifications
Dimensions (LxWxH): 204 x 200 x 74 mm 8.03 x 7.87 x 2.91 inch
Weight: 0.95 kg / 2.09 lb

Operating Conditions
Operating Temperature: -4°F to 113°F (-20°C to 45°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Humidity: 0% ~ 95% RH

(Price is only for pickup at Riverwood 2210 NSW. If you require shipping please contact us before your purchase)
