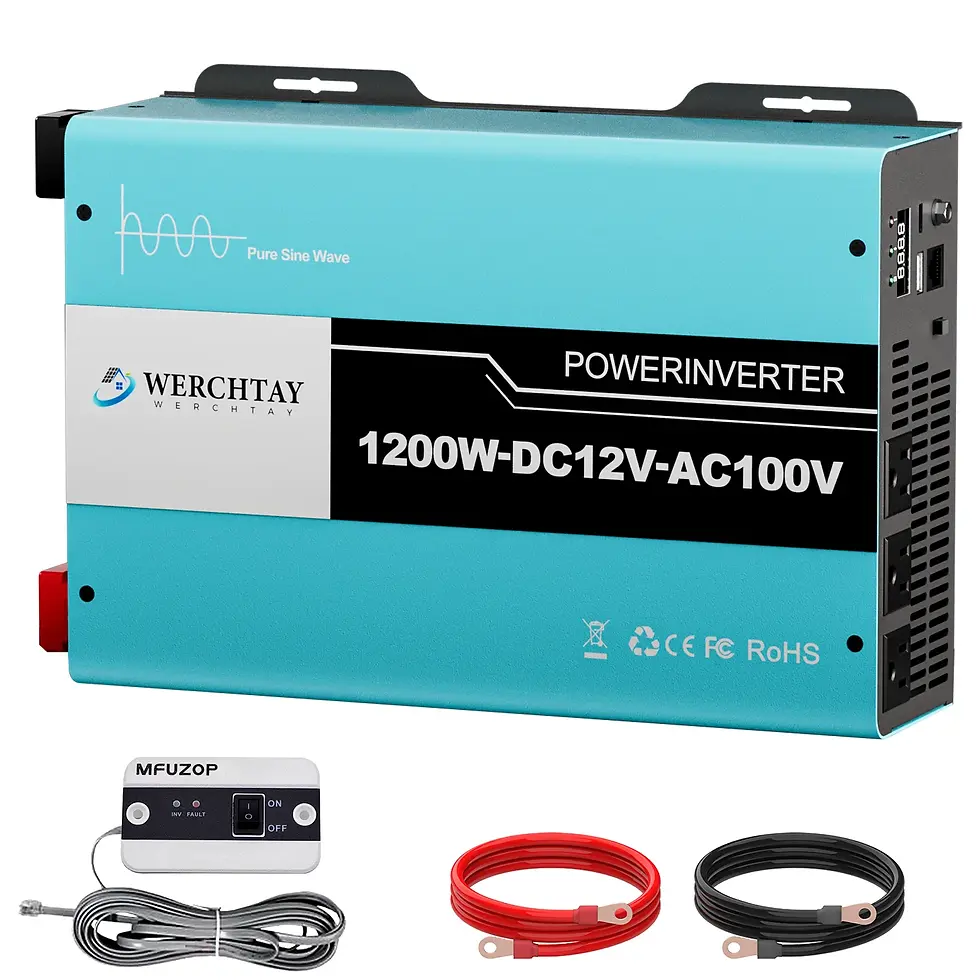

1200W Pure Sine Wave Inverter

Pure Sine Wave: Clean power for sensitive electronics.
High Efficiency: 90%-95% energy, zero waste, maximum performance!
Smart Fan Control: Activates only when needed, adapts to temperature.
Full Protection: Guards against voltage, overload, short circuits, and overheating.
LED Display: Clear and easy-to-read indicators.
Different specifications are available to precisely meet your needs!

Specification
1. Input
Rated Input Voltage: WEB1212-110V 1200W: 12V
                                                 WEB1212-230V 1200W: 12V
                                                 WEB2412-230V 1200W: 24V
Rated Current: WEB1212-110V 1200W: 105A
                                     WEB1212-230V 1200W: 105A
                                     WEB2412-230V 1200W: 50A
Maximum Efficiency: 90%
Battery Type: sealed lead-acid/floodedgel; batteries/Lithium battery

2. AC Output
Rated Power: 2400W
AC Voltage: 230V/110V
Frequency: 50Hz/60Hz
Waveform: PURE SINE WAVE

3. Input Protection
Battery Low Alarm: 10.5V±0.5V / 21.0V±0.5V
Battery Low Recovery: 11.0V±0.5V / 22.0V±0.5V
Battery Low Shutdown: 10.0V±0.5V / 20.0V±0.5V
Battery High Shutdown: 15.5V±0.5V / 31.0V±0.5V

4. Output Protection
Output Short Circuit Protection: After the fault is eliminated, it can be rebooted
Overload Protection: 110%≤Load<125%, 1 minute shutdown; 125%≤Load<150%, 30s shutdown; 150%≤Load, shut down immediately
Over-temperature Protection: Heat dissipation temperature>90℃, over-temperature protection

5. Operating Environment
Operating Temperature: 0-40°C
Humidity: 0-80%

6. Other
Dimension: 285.7x221.9x88mm
Remote Control Switch Interface: Standard configuration
USB: 5V3A, QC3.0/QC2.0
AC Output Sockets: 2

(Price is only for pickup at Riverwood 2210 NSW. If you require shipping please contact us before your purchase)
