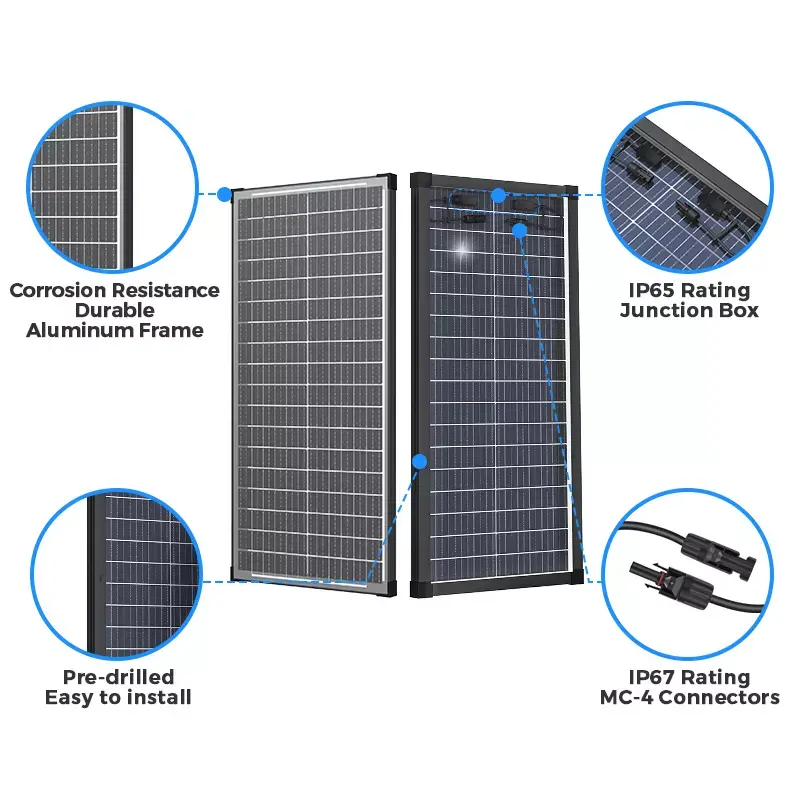

100 Watt Bifacial Solar Panel

Grade A solar cell, 12BB, 24% conversion.
Aluminum frame, strong and durable.
10-15% more energy, capturing sunlight on both sides and generating electricity on both sides.
Reserved mounting holes, easy to install.
Saves energy even in partial shade.

Specification
1. Module Performance
Max Power: 100W
Cell Type: Monocrystalline
Maximum Power Voltage: 19.5V
Maximum Power Current: 5.13A
Open Circuit Voltage: 23.4A
Short Circuit Current: 5.64A
Maximum System Voltage: DC1000V
Series Fuse Rating [A]: 30A

2. Mechanical Specifications
Dimension: 1010 x 460 x 30 mm
Weight: 4.9kg
Connector: MC4 Compatible
Output Cables: 4 mm² (90cm)
Frame: Anodized aluminium alloy
Withstanding Hail: 5400 Pa
Wind Resistance: 2400 Pa
Junction Box: IP68 rated
Protection Class: IP68

3. Operating Parameters
NOCT: 41 - 45 °C
Temperature Coefficient of Voc: -0.25% / °C
Temperature Coefficient of Isc: 0.04% / °C
Temperature Coefficient of Pm: -0.34% / °C
Temperature Range [°C]: -40 - +85 °C

(Price is only for pickup at Riverwood 2210 NSW. If you require shipping please contact us before your purchase)
